Geshem Best Seller Newly Developed 12.1-21.5 inch Capacitive Touch Screen 6USB 6COM 2LAN Industrial laptop For Windows7/10/Linux

FOB Reference Price:Get Latest Price
$289.00 - $819.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
TQ12-51AC/TQ12-7XAC TQ15-51AC/TQ15-7XAC TQ17-51AC/TQ17-7XAC TQ19-51AC/TQ19-7XAC TQ21-51AC/TQ21-7XAC
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Samples - $289.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
Panel PC
Brand Name:
Geshem TQ
Place of Origin:
Guangdong, China
CPU:
Intel Core i3/i5/i7/Celeron J1900
Operate System:
For Windows7(J1900)/Windows10; Linux
Memory:
J1900:2GB DDR3, Up to 8GB;3855U/3865U/Core:2GB DDR4, Up to 16GB
Storage:
SSD: Standard 64GB, Up to 512GB
USB:
J1900:3*USB2.0+1*USB3.0;3855U/3865U/Core:4*USB3.0
Ethernet:
2* GbE LAN RJ45 1000M
COM:
6*RS232(1~2*RS485/RS422 optional)
Display:
1*VGA,1*HD Display
Operating Temp:
-30℃ --70℃
Color:
Silver
Packaging & Delivery
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Notes

Please contact customer service for accurate prices.
The above prices are for your reference only due to our the different various product configurations and customized services.
Thanks for your kindly understanding.

Features

◆12.1-21.5" industrial display, multi-Point capacitive touch wide screen / front panel IP65
◆Chipset:Intel Celeron J1900/3855U/3865U/Core I3/I5/I7 CPU
◆Provide 6*USB/6*COM/2*GbE LAN RJ45 1000
◆J1900:DDR3 2GB, up to 8GB; 3855U/3865U/Core I3/I5/I7:DDR4 , up to 16GB; SSD 64GB, up to 512GB
◆Support Windows 10/7;Linux
Specifications



Display
12.1" TFT LCD
1280*800; 350cd/m2; 800:1
15.6" TFT LCD
1920*1080; 300cd/m2; 800:1
17.3" TFT LCD
1920*1080
19.5" TFT LCD
1440*900; 250cd/m2; 1000:1
21.5" TFT LCD
1920*1080; 250cd/m2; 1000:1
Touchscreen
Multi-Point capacitive touch



Performance
Chipset
Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7
RAM
J1900: Standard 2GB DDR3, up to 8GB
3855U/3865U/Core I3/I5/I7: Standard 2GB DDR4, up to 16GB
Hardware Monitor
Monitors voltage, CPU, TEMP
Watchdog Timer
0-255 Sec by software
Storage
SSD 64GB up To 512GB
Power Supply
9-24V DC(Standard 12V/5A adaptor, 9-36V DC optional)
O/S
O/S
Support Windows 10, Linux
J1900 also support Windows7




I/O Port
USB
J1900: 3*USB2.0+1*USB3.0
3855U/3865U/Core I3/I5/I7: 4*USB3.0
Ethernet
2*GbE LAN RJ45 1000M
COM
6*RS232(1-2*RS485/RS422 optional)
Audio
1*Line-out+1*Mic-in
Display
1*VGA+1*HDMI
MiniPCle
1*MiniPCle(WIFI/BT/3G/4G optional)
GPIO
1*4 In/Out




Environmental
Anti-vibration
5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration
Anti-shock
10g acceleration, 11ms duration
IP Level
Front panel IP65
Reliability
MTBF≥5000h; MTTR≤0.5h
Operating Temperature
0℃~50℃ with air flow
Storage Temperature
-30℃~70℃
Operating Humidity
95% @40℃, non-condensing






Mechanical
Dimensions
527mm(L)*317.5mm(W)*54.9mm(H)


Mounting size
VESA mounting: 75*75mm/100*100mm

Embedded mounting: 520mm*312mm


Material
Fanless High-strength and elegant Al-alloy panel


Weight
12 Inch: 2.12kg/3.12kg(Net/Gross)
15 Inch: 3.57kg/4.77kg(Net/Gross)
17 Inch: /
19 Inch: 4.48kg/5.98kg(Net/Gross)
21 Inch: 5.29kg/7.78kg(Net/Gross)
Color
Silver
Order Information
Order Information
Type
Description
TQ12-51AC
12.1"/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-71AC
12.1"/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-72AC
12.1"/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-73AC
12.1"/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-75AC
12.1"/6th Gen/I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-77AC
12.1"/6th Gen/I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-74AC
12.1"/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-76AC
12.1"/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ12-78AC
12.1"/7th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-51AC
15.6"/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-71AC
15.6"/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-72AC
15.6"/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-73AC
15.6"/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-75AC
15.6"6th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-77AC
15.6"6th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-74AC
15.6"/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-76AC
15.6"/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ15-78AC
15.6"/7th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-51AC
17.3"/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-71AC
17.3"/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-72AC
17.3"/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-73AC
17.3"/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-75AC
17.3"/6th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-77AC
17.3"/6th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-74AC
17.3"/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-76AC
17.3"/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ17-78AC
17.3"/7th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-51AC
19.5"/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-71AC
19.5"/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-72AC
19.5"/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-73AC
19.5"/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-75AC
19.5"/6th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-77AC
19.5"/6th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-74AC
19.5"/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-76AC
19.5"/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ19-78AC
19.5"/7th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-51AC
21.5"/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-71AC
21.5"/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-72AC
21.5"/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-73AC
21.5"/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-75AC
21.5"/6th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-77AC
21.5"/6th GenI7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-74AC
21.5"/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-76AC
21.5"/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
TQ21-78AC
21.5"/7th GenI7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A
Details Images
Packing & Payment
packing and shipping
1. For one sample, packing size is 34x29x11cm, and packing weight is about 2.3kg. Five units tablet pc will be packed in a bigger box.
2. Accessory: Tablet PC, power adapter, CD driver, QC pass card, Stylus, VESA stand, hand and shoulder straps are optional.
3. Express, Air or sea transportation are negotiable.

  • Geshem guarantee on-time delivery and make sure all product fully tested before packing.
  • All products are packed with new and firm carton, capable of long-distance transportation.
  • Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT. Flexible choice of Logistics company upon buyer's requests.
  • Delivery time: Due to our abundant inventory, orders only takes 1-3 working days after receiving the payment, and will use third parties delivery services or delivered as clients request.
  • FAQ:



    1. Q: What's the time of delivery?

    A: It depends on your order quantity and our production schedule. Usually 3-4 working days for sample order, and  15-20 working days for mass production after payment received.



    2. Q: What kind of payment do you accept?

    A: TT, LC, Western Union, Paypal, Escrow, VISA are all accepted.



    3. Q: Do you have an overseas office?

    A: Yes, we have an overseas office in Germany and India, which can provide convenient after service and fast delivery from the office.



    4. Q: How long is your guarantee?

    A: 1 year. Reduce your cost is our first choice, we will replace you with components for any non-human defects.



    5. Q:100%full inspections before shipment?

    A: We conduct a 100% full inspection in every production procedure.



    6. Q: How to ship the goods to customers?

    A: DHL, UPS, TNT, FedEx, EMS, by air, by sea, etc. Any shipping methods convenient for customers are available.

Why Choose Geshem

Why Choose Geshem

1. Material from Taiwan: ADATA, Innodisk, Kingston, OPP, Higgstec

2. Certificate: ISO9001, ISO14000, RoHS, CE, FCC , BSMI

3. Patent: Own 7 Patents so far

4. Office: Headquarter at Shenzhen, office at Beijing / Shanghai

5. Exhibition: Nuremberg Germany, Taiwan/ Beijing/ Shanghai every year

6. Agent Brand: Getac from Taiwan

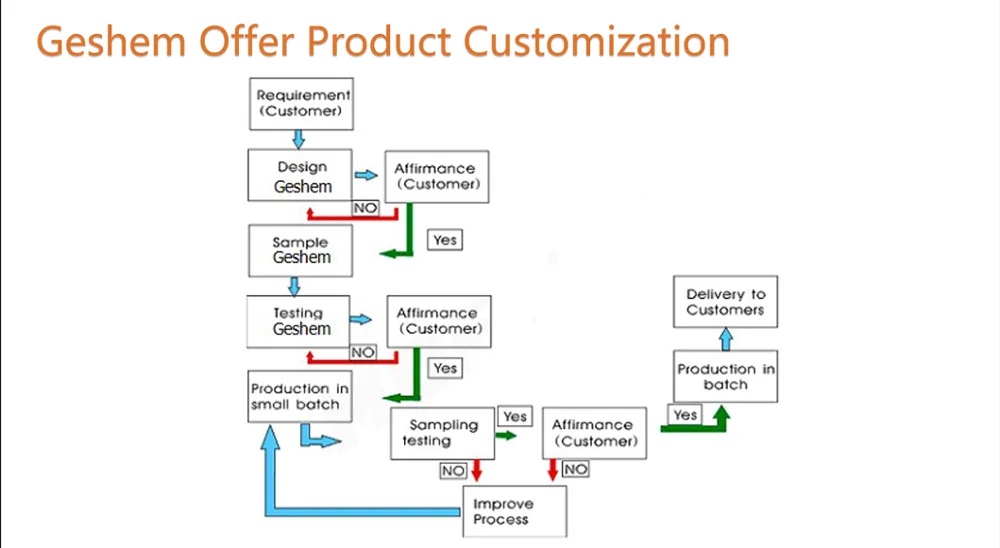

7. Geshem provide mature customized services to our customers.

  • ·Shenzhen Geshem, found in2008, now is becoming a leading provider of cutting-edge industrial computer solutions.
  • ·As experts in industry pc, we draw on over 15 years of industry-wide know-how to offer you products such as Industrial Panel PC, Rugged Tablets, Fanless Box PC and Mainboard, etc. It covers everything from standard to custom products.
  • ·Shenzhen Geshem, a company certified by ISO9001: 2015, is required providing annual audit, which helps us reinforce Geshem’s customer-centric approach and make us a dedication to providing the best quality computers and best service all the time.
